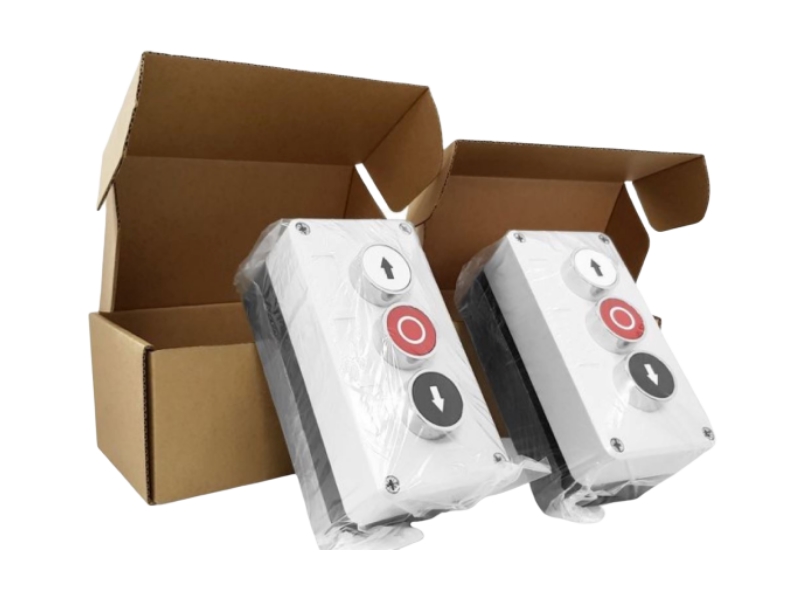

    YCH-BG-RM Triple Push Button

    YCH-BG-RM Triple Push Button

    P015

    Product Description

    BG-RM
    BG-RM

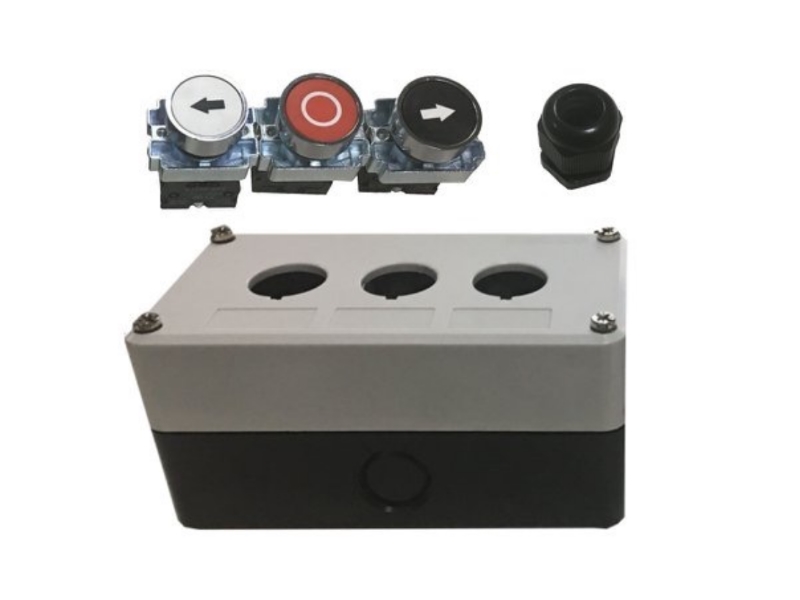

    All Accessories
    All Accessories

    Technology Parameter
    Rate insulated Voltage 440V
    Stipulated hot current lth 10A
    Work Frequency 50Hz
    Rate Working Voltage/ Current AC-15 (220V/ 6A, 380V/ 4A)
    Rate Working Voltage/ Current DC-13 (24V/ 3.6A, 220V/ 0.6A)
    IP Grade IP44
    Meterials ABS
    Color Gray White
    Contacts 1 N/C and 2 N/O

    Function and Advantage Introduction
    Not less than 2 million mechanical life, not less than 500,000 electrical life.
    The Switch contacts are made of copper-based silver point and the whole is silver plated
    The product base is made of flame retardant Nylon
    The casing is fixed with anti-shedding screws
    Products all four sides are designed with the M20 holes, and customers can choose the holes on their own
    The product is designed with a waterproof seal
    Exquisite and easy installation

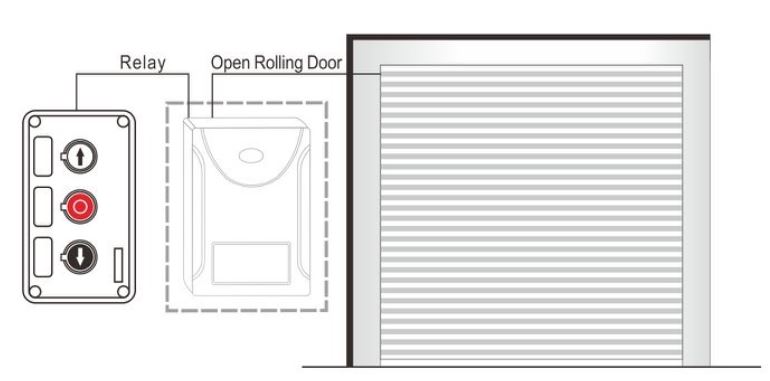

    Installation Diagram and Application
    Installation Diagram and Application

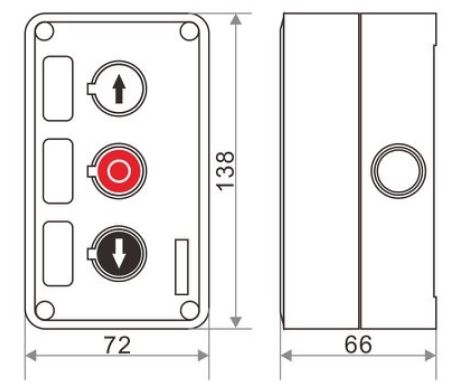

    Size (mm)
    Size (mm)
