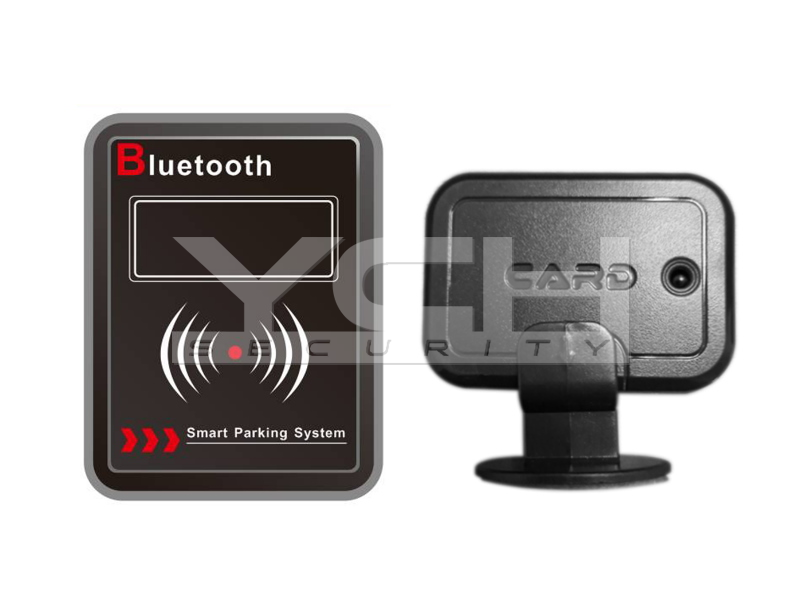

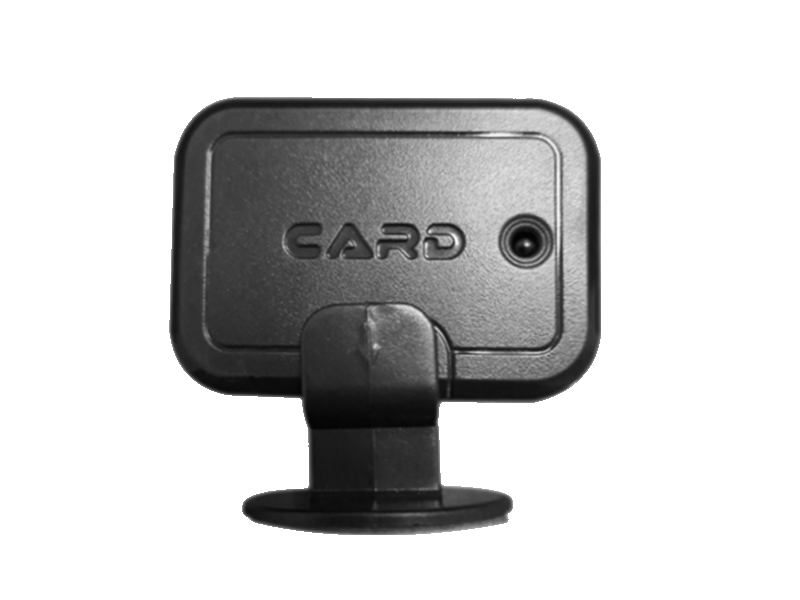

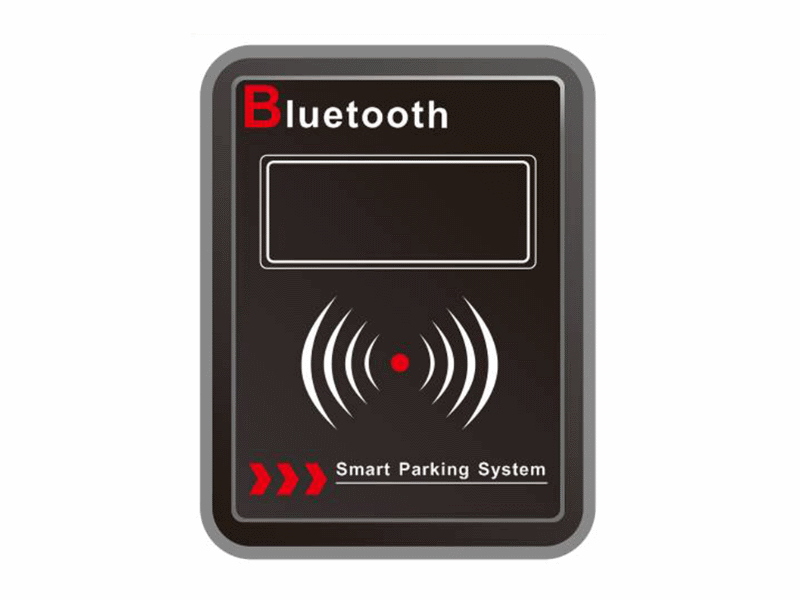

    Long Range Bluetooth Card Reader

    Long Range Bluetooth Card Reader

    P053

    Product Description

    Long Range Bluetooth Card Reader   Long Range Bluetooth Card Reader
    This Bluetooth Reader is based on the most advanced Bluetooth technology in the world combined ，with the characteristics of optical excitation and precise positioning, and developing-distance card reading device for parking lots application only.

    Products Specification
    Physical characteristics Size 200mm x 230mm x 32mm
    Weight 4KG
    Environmental Parameters Operating Temperature -40 - +70°C
    Storage Temperature -40 - +85°C
    Working Humidity 5% - 90%
    Waterproof and Dustproof Level  IP65
    Working Voltage  9 - 24V (9 - 18V Type)
    Working Current <500mA (max)
    Receiving Sensitivity -110dbm
    Serial COMM Baud Rate 9600bps
    COMM Port RS485, Wigand26/ Wiegand34
    Wireless Port SMA Interface impedance 50 Europe
    Working Frequency ISM Frequency band 300-450MHz <0.3s/80km/h (max)
    Recognition Speed <0.3s/ 80km/h (max)
    Card Reading Interval <1s
    Card Reading Distance  0 - 20m
    Recognition Angle <60° (Horizontal)
    Recognition Accuracy 100%
    Modulation ASK
    Output IO 1-way card reading relay output interface
    Input IO 1 input trigger interface
    Device Properties Device ID 1 byte
    Case Plastic
    Indicator Red: power light
    Blue: signal light/ card light
    Installation Way   Vertical installation
