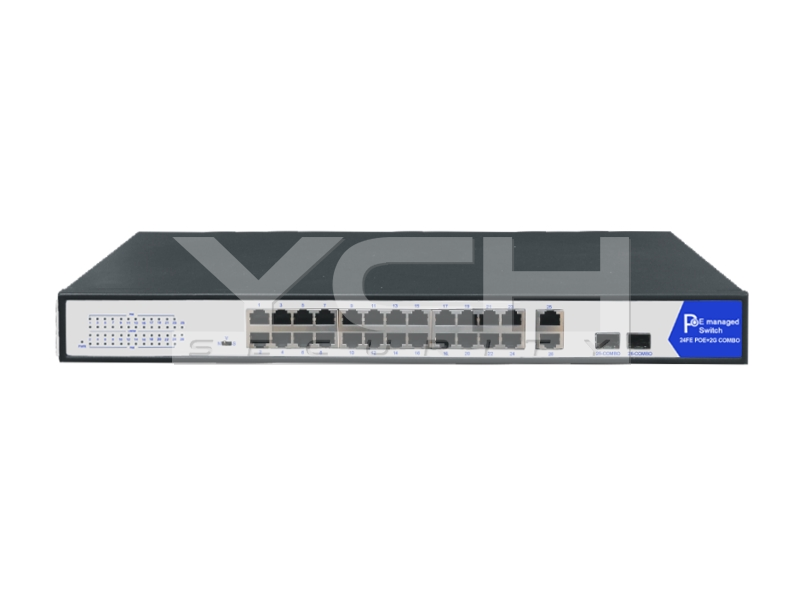

    YCH-2026T: 24PoE+2 Gigabit PoE Switch

    YCH-2026T: 24PoE+2 Gigabit PoE Switch

    P027

    Product Description

    Features
    • Support 24x10/100Base-TX PoE ports, RJ45.
    • Support 2x1000Base uplink ports.
    • Supports 10/100/1000M auto sense.
    • Supports straight/cross wire auto-sensed.
    • Supports Full/half duplex auto-sensed.
    • Support IEEE802.3af/at POE standards, maximum 30W output each port.
    • 20G switching capacity, high bandwidth for data transmission.
    • Support one key VLAN mode/ Extra transmission mode, meeting different requirements.
    • Reliable design of built-in power mode, up to 300W power output totally.
    • Anti-lightning and surge protection, Short circuit protection, Overvoltage and undervoltage protection, safety and reliability.
    • Compact casing design, plug and play, easy maintenance.

    Technical Parameter List
    Interfaces 24*10/100Base-T PoE ports
    2*10/100/1000Base-T uplink ports
    Switching Capacity: 20G
    MAC address table: 4K
    Support store-and-forward transmission
    Standards IEEE802.3, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE 802.3ab 1000BASE-T,
    IEEE 802.3z 1000BASE-X, IEEE802.3x Flow Control, IEEE802.1q VLAN,
    IEEE802.3af PoE, IEEE802.3at PoE+
    Transmission Distance Cat5: 100m
    Multi-mode fiber：550 meter；
    Single-mode：20/40/80/120 kilometer
    PoE PoE ports：24
    PoE DC 48V，Maximum 30W
    Supply line：1/2（+），3/6（-）
    PoE Port Features Power per port 15.4W (IEEE802.3af) / 30W (IEEE802.3at)
    Power AC 100~240V 50/60Hz input
    Total power 300W
    Indicators P：Power indicator， V：enable VLAN mode； Tx link/Act indicator，POE POE status，
    Tx ports Gigabit rate indicator
    Environmental Specification Working temperature: -10~55℃
    Storage Temperature: -40 ° ~ 70 °C,
    Working Humidity: 10% ~ 90%, no condensation
    Storage Humidity: 5% ~ 90%, no condensation
    Physical Dimension (W*D*H)：440x290x45mm
    Weight：4100g
